编号
PART NO.

尺寸
SIZE

喷油器对应号
INJECTOR NO.


1

8DT1011

φ16.9x31.25xM15

Bosch:
110064 110356 110359

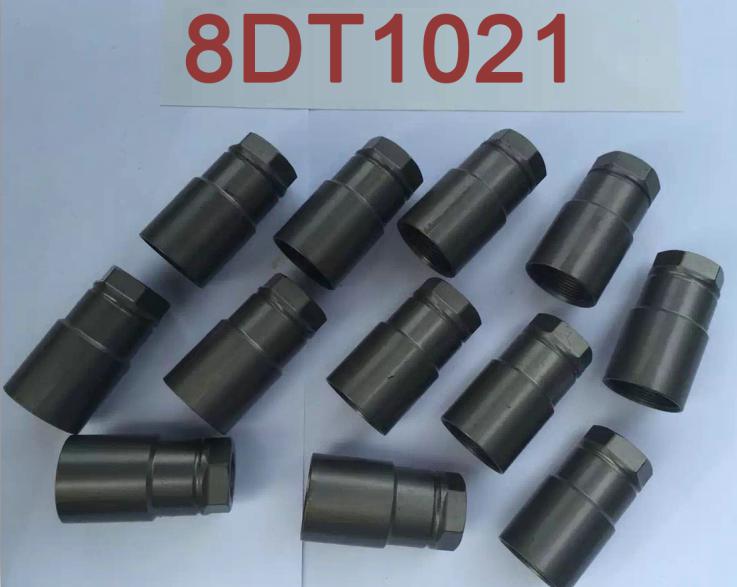

2

8DT1021

φ18.8x34.7xM17

Bosch:
120066 120067

3

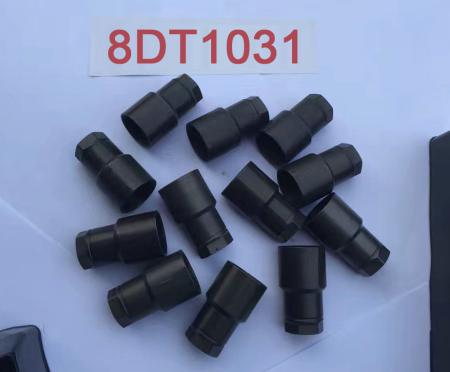

8DT1031

φ21x36.2xM19

Cummins:
120059 120078 120123
120289 120393

4

8DT1041

φ21x34.7xM19

120170 120083 120110
120121 120122 120215

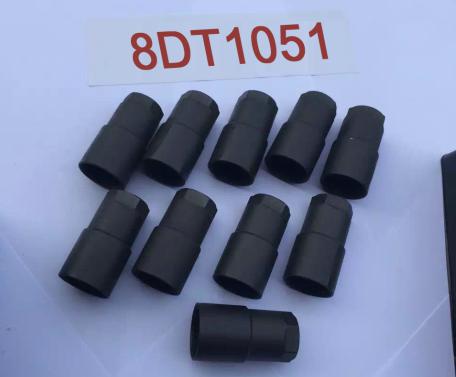

5

8DT1051

φ18.8x35xM17

110466 110718 110317
110335 110313 110333
110293

6

8DT1061

φ20.9x34.7xM19

Bosch:
120106/309/310/232

7

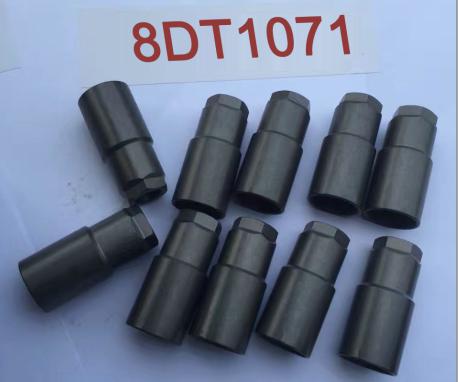

8DT1071

φ19.1x41.5xM17
φ19.1x42xM17
φ19.1x42.5xM17
φ19.1x46xM17

6222 6790 6510
0760 5800 7060
23670-01010
23670-30240
23670-30400

8

8DT1081A

φ20.9x43.35xM19

5511.6700.8100
(WITHOUT SLOT)
无槽

9

8DT1081B

φ21.3x43.35xM19

5471
(WITH SLOT)
有槽

10

8DT1091A

φ21.3x47.9xM19
WITH SLOT
有槽

Denso:
6353/6593

11

8DT1091B

φ21.3x46.8xM19
WITHOUT SLOT
无槽

Denso:
5215/5226

12

8DT1101A

FOR SOLENOID VALVE
电磁阀紧帽

120 SERIES (CUMMINS EXCLUDES)
120系列(康明斯除外)

13

8DT1101B

FOR SOLENOID VALVE
电磁阀紧帽

WEICHAI, XICHAI, FAWDE

14

8DT1111A

FOR SOLENOID VALVE
电磁阀紧帽

123.059.231.236 SERIES
123.059.231.236系列

15

8DT1111B

BOTH CONNECTOR M14
双头接头 M14

120 SERIES
120系列

16

8DT1111C

BOTH CONNECTOR M12
双头接头 M12

110 SERIES
110系列

17

8DT1121A

φ29.3x31.8xM26
FOR SOLENOID VALVE
电磁阀紧帽

CAT 320D

18

8DT1121B

φ17.5x45xM16
NOZZLE NUT
油嘴紧帽

CAT 320D

19

8DT1131A

φ18.9x41xM17

Delphi

20

8DT1131B

φ16.9x41xM15.2

Delphi

21

8DT1141A

Φ18.85×34.7×M17

IVECO

22

8DT1141B

Φ20.85×34.7×M19

IVECO

23

8DT1151A

Φ20.5×35.2×M17

FOTON CUMMINS

24

8DT1151B

Φ33×16×M31

FOTON CUMMINS

25

8DT1161A

Φ17.5×45×M16
NOZZLE NUT
油嘴紧帽

320D (CHINESE MODE) (GLB)

26

8DT1161B

Φ17.5×45×M16
NOZZLE NUT
油嘴紧帽

320D (CHINESE MODE) (LF)

27

8DT11171A

Φ29.3×32.5×M26
FOR SOLENOID VALVE
电磁阀紧帽

320D (CHINESE MODE) (GLB)

28

8DT1171B

Φ29.5×32×M27
FOR SOLENOID VALVE
电磁阀紧帽

320D (CHINESE MODE) (LF)

29

8DT1181

Φ38.25×34.2×M35

30

8DT1191A

Φ39×90.8×M34

EUI

31

8DT1191B

Φ39×90.8×M34

EUI

32

8DT1201

Φ30.5×9.7×M27
FOR SOLENOID VALVE
电磁阀扁帽

110 SERIES
110系列

33

8DT1211

Φ30.8×20.5×M28*0.5/M28*0.75
FOR SOLENOID VALVE
电磁阀紧帽

0445120027/042/082

34

8DT1221

Φ37.45×85.3×M29

CAT:C7/C9

35

8DT1231

Φ39.35×90.4×M33

CAT:C13/C15

36

8DT1241

Φ37.45×82.3×M29

CAT:C-9
